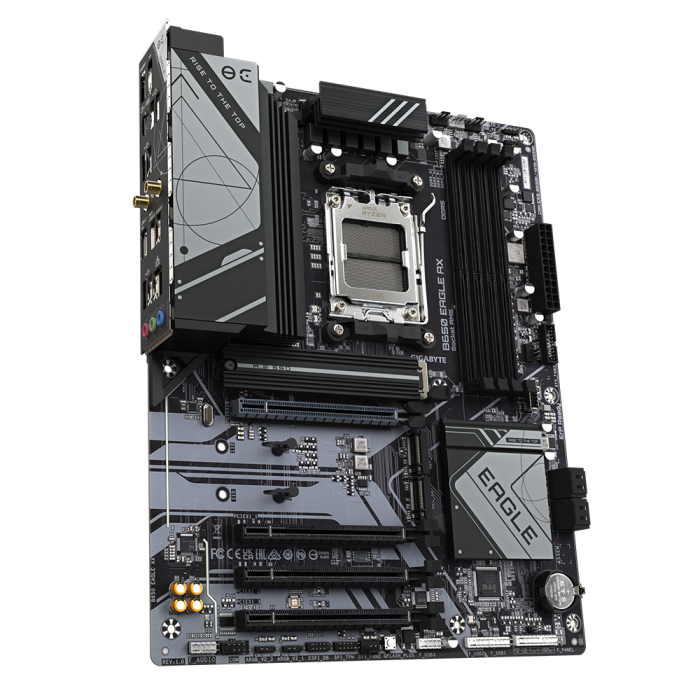

Gigabyte B650 EAGLE AX Motherboard AMD AM5 / WiFi (B650EAGLEAX)

Gigabyte B650 EAGLE AX

Supports up to 8th Generation Ryzen CPUs
Supports DDR5 6400+ (OC)

- AMD B650 Chipset
- AM5
- ATX
- DDR5 (7600MHz OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800 MHz
- 4xMemory slots
- 1xDisplayPort 1.4
- 1xHDMI 2.1
- 1xAudio-In
- 1xAudio-Out
- 1xMicrophone
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
- 1xRJ45 Gigabit LAN (Realtek RTL8111H)
- 1xRealtek® Wi-Fi 6E RTL8852CE with Bluetooth 5.3
- 4xSATA 6Gb/s
- 7.1 CH HD Audio (Realtek ALC897) Nahimic Audio
- 1xPCIe 4.0 x16 and running at x1
- 2xPCIe 3.0 x16
- 2xPCIe 4.0 x1
- 1xM.2 PCIe Gen5 x4
- 1xM.2 PCIe Gen4 x4
