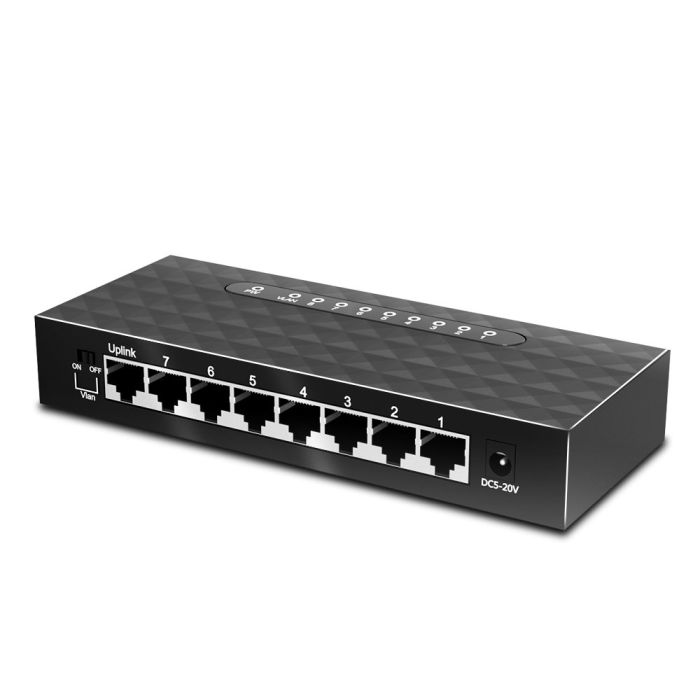

EDUP EP-SG7810 Network Switch 8 port 10/100/1000mbps / RTL8370N / VLAN (EP-SG7810)

25,07 €
Jätke toote kohta ülevaade
Laost otsas
Artikkel
IT_28176_EP-SG7810
Tarneaeg kuni 3 päeva
Palun teavitust selle kauba allahindlusest
Andke mulle teada, kui see toode on laos
EAN
6955690004453

Tasuta tarne

alates 59€ pakiautomaadi

kasutamisel

   Osta jarelmaksuga

    Tellimustele alates 10€

  •  Valige see makseviis
  •  Täitke avaldus
  •  Vastus päeva jooksul
  •  Intressimäär alates 9,5%
  •  Mugav maksegraafik
  •  Saatmine samal päeval
  •  Lisainformatsioon
  • Single-chip 8-port gigabit non-blocking switch architecture
  • Embedded 8-port 10/100/1000Base-T PHY
  • Each port supports full duplex 10/100/1000M connectivity (half duplex only supported in 10/100M mode)
  • Full-duplex and half-duplex operation with IEEE 802.3x flow control and backpressure
  • Supports 9216-byte jumbo packet length forwarding at wire speed
  • Supports Realtek Cable Test (RTCT) function
  • Supports 64-entry ACL Rules
  • Search keys support physical port, Layer2, Layer3, and Layer4 information
  • Actions support mirror, redirect, dropping, priority adjustment, traffic policing, CVLAN decision, and SVLAN assignment
  • Supports 5 types of user defined ACL rule format for 64 ACL rules
  • Optional per-port enable/disable of ACL function
  • Optional setting of per-port action to take when ACL mismatch
  • Supports IEEE 802.1Q VLAN
  • Supports 4K VLANs and 32 Extra Enhanced VLANs
  • Supports Un-tag definition in each VLAN
  • Supports VLAN policing and VLAN forwarding decision
  • Supports Port-based, Tag-based, and Protocol-based VLAN
  • Up to 4 Protocol-based VLAN entries
  • Supports per-port and per-VLAN egress VLAN tagging and un-tagging
  • Supports IVL, SVL, and IVL/SVL
  • Supports 8K-entry MAC address table with 4-way hash algorithm
  • Up to 8K L2/L3 Filtering Database
  • Supports Spanning Tree port behavior configuration
  • IEEE 802.1w Rapid Spanning Tree
  • IEEE 802.1s Multiple Spanning Tree with up to 16 Spanning Tree instances
  • Supports IEEE 802.1x Access Control Protocol
  • Port-Based Access Control
  • MAC-Based Access Control
  • Guest VLAN
  • Supports Quality of Service (QoS)
  • Supports per port Input Bandwidth Control
  • Traffic classification based on IEEE 802.1p/Q priority definition, physical Port, IP DSCP field, ACL definition, VLAN based priority, MAC based priority, and SVLAN based priority
  • Eight Priority Queues per port
  • Per queue flow control
  • Min-Max Scheduling
  • Strict Priority and Weighted Fair Queue (WFQ) to provide minimum bandwidth
  • One leaky bucket to constrain the average packet rate of each queue
  • Supports rate limiting (64 shared meters, with 8kpbs granulation)
  • Supports RFC MIB Counter
  • MIB-II (RFC 1213)
  • Ethernet-Like MIB (RFC 3635)
  • Interface Group MIB (RFC 2863)
  • RMON (RFC 2819)
  • Bridge MIB (RFC 1493)
  • Bridge MIB Extension (RFC 2674)
  • Supports Stacking VLAN and Port Isolation with 8 Enhanced Filtering Databases
  • Supports IEEE 802.1ad Stacking VLAN
  • Supports 64 SVLANs
  • Supports 32 L2/IPv4 Multicast mappings to SVLAN
  • Supports 4 IEEE 802.3ad Link aggregation port groups
  • Supports OAM and EEE LLDP (Energy Efficient Ethernet Link Layer Discovery Protocol
  • Supports Loop Detection
  • Security Filtering
  • Disable learning for each port
  • Disable learning-table aging for each port
  • Drop unknown DA for each port
  • Broadcast/Multicast/Unknown DA storm control protects system from attack by hackers
  • Supports Realtek Green Ethernet features
  • Link-On Cable Length Power Saving
  • Link-Down Power Saving
  • Each port supports 3 parallel LED or scan LED outputs
  • Supports EEPROM SMI Slave interface to access configuration register
  • Supports 16K-byte EEPROM space for configuration
  • Integrated 8051 microprocessor
  • Supports Flash Interface
  • 25MHz crystal or 3.3V OSC input



ColorBlack
MaterialsPlastic, aluminium
ManufacturerD-Link
Lisainfo
BrändEdup
EAN6955690004453
Tarne aegTarneaeg kuni 3 päeva
