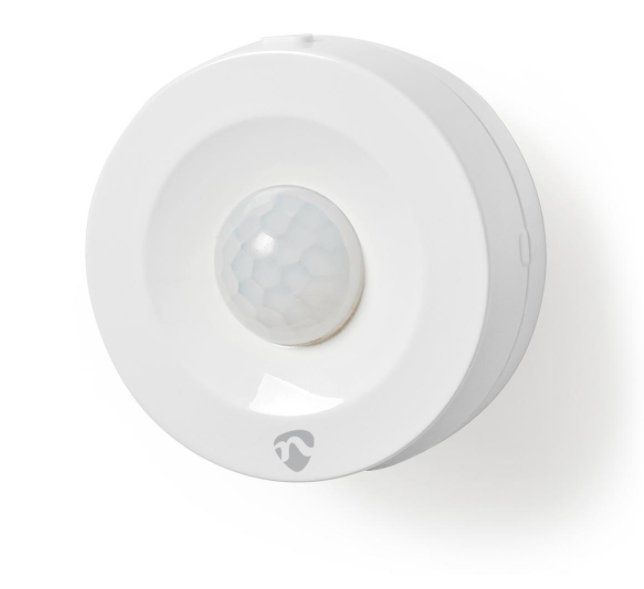

Nedis ZBSM10WT Zigbee 3.0 Smart Motion Sensor (ZBSM10WT)

This smart PIR (Passive Infrared) motion sensor will recognize physical movement up to a distance of approximately five metres covering an angle of 120°. This information can be sent to your Nedis SmartLife application. To do this, a Nedis Zigbee gateway (WIFIZBxxx) is required.
This sensor can not only notify you when someone is in the room, but by combining it with other products in the Nedis SmartLife application, you can trigger any additional light, smart plug or siren.
Its compact size and the included battery with a lifetime of up to one year (with six triggers per day) lets you place this sensor anywhere you want (within a range of approximately 30 metres of the Zigbee gateway)

Features

• Detect motion using the PIR (Passive Infrared) sensor wherever you want - within a range of approximately 30 m from the Nedis Zigbee gateway (WIFIZBxxx)
• Detect motion up to a distance of 5 m at a 120° angle
• Fully integrates with your Nedis SmartLife application (through the Nedis Zigbee gateway) to combine with other smart products in automations.
• Battery powered for flexible placement
• Battery lifetime of up to one year

Colour    White
Power source type    Battery Powered
IP rating    IP20
Material    Plastic
Input voltage    3 VDC
Maximum transmit power    10 dBm
Diameter    46 mm
Depth    30 mm
App available for    Android™
IOS
Detector angle    120 °
Weight    27 g
Required batteries (included)    1x CR2450
Height    46 mm
Width    46 mm
Control Through Mobile App    Yes
Length    46 mm
Operating temperature    0 - 40 °C
Temperature range    0 - 40 °C
Input current    0.01 A
Max. battery life    12 months
Detector range    5 m
Maximum transmit antenna gain    2.8 dBi
Transmit frequency range    2405-2480 MHz
Maximum power consumption    0.065 W
Wireless technology    Zigbee 3.0
