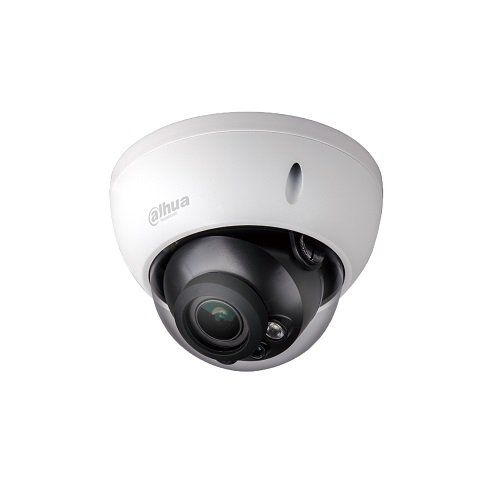

Dahua HDBW2402RZ HD-CVI Camera (HDBW2402RZ)

Camera
Image Sensor: 1/1.8" CMOS
Effective Pixels: 2560(H)×1440(V), 4MP
Scanning System: Progressive
Electronic Shutter Speed: PAL: 1/25s~1/100,000s NTSC: 1/30s~1/100,000s
Minimum Illumination: 0.002Lux/F1.9, 30IRE, 0Lux IR on
S/N Ratio: More than 65dB
Distance: Up to 30m (98feet)
On/Off Control: Auto / Manual
LEDs: 2

Lens
Lens Type: Motorized lens / Fixed iris
Mount Type: Board-in
Focal Length: 3.7-11mm
Max Aperture: F1.9
Angle of View: H: 114.3°~47.2° V: 61.7°~26.8°
Focus Control: Auto / Manual
Close Focus Distance: 1500mm (59.06")

DORI Distance
Note: The DORI distance is a "general proximity" of distance that helps easily pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4, which defines criteria for Detect, Observe, Recognize, and Identify respectively.
DORI Definition | Distance
Wide | Tele
Detect | 25px/m (8px/ft) | 58m(189ft) | 131m(429ft)
Observe | 63px/m (19px/ft) | 23m(75ft) | 52m(172ft)
Recognize | 125px/m (38px/ft) | 12m(38ft) | 26m(86ft)
Identify | 250px/m (76px/ft) | 6m(19ft) | 13m(43ft)

Pan / Tilt / Rotation
Pan/Tilt/Rotation: Pan: 0° ~ 355° Tilt: 0° ~ 75° Rotation: 0° ~ 355°

Video
Resolution: 4MP (2560×1440)
Frame Rate: 25/30fps@4MP, 25/30fps@1080P
Video Output: 1-channel BNC high definition video output / CVBS video output (DIP switch)
Day/Night: Auto (ICR) / Manual
OSD Menu: Multi-language
BLC Mode: BLC / HLC / WDR
WDR: 120dB
Gain Control: AGC
Noise Reduction: 2D/3D
White Balance: Auto / Manual
Smart IR: Auto / Manual

Certifications
Certifications: CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface
Audio Interface: 1ch in

Electrical
Power Supply: 12V DC ±30%
Power Consumption: Max. 8.8W (12V DC, IR on)

Environmental
Operating Conditions: -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH * Start up should be done at above -30°C (-22°F)
Storage Conditions: -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal Resistance: IP67 & IK10
