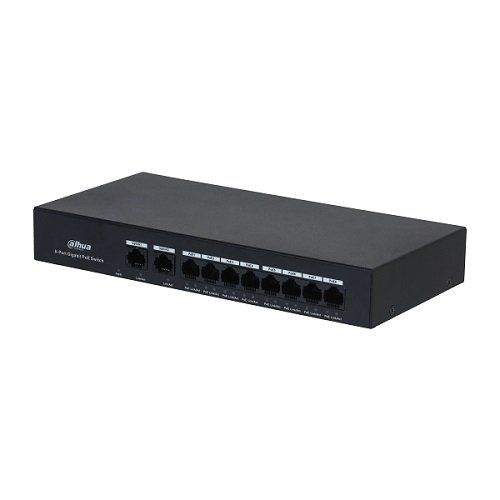

Dahua PFS3010-8GT-65 8-Port PoE Switch (3010-8GT-65)

Features:

• 10-port economical gigabit switch with 8-port PoE.
• 8-pin simultaneous PoE power supply (1/2/4/5 positive, 3/6/7/8 negative). Signal lines and idle lines supply power at the same time.
• Compatibility with IPC is enhanced. Cable loss is reduced. Loading capacity is increased.
• Unmanaged gigabit PoE switch.
• Plug-and-play, no configuration required.
• Supports desktop-mount installation.
• Supports IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x standards.
• Conforms to IEEE802.3af and IEEE802.3at power supply standard.

Technical Specifications:

• Model PFS3010-8GT-65.
• Ethernet Port: 8x 10/100/1000Mbps, Uplink 2x 10/100/1000Mbps; PoE ports: 8x 10/100/1000Mbps ports.
• PoE Power Consumption: Port 1-8 = 30W, Total = 65W, Idling_ 1.8W.
• PoE PIN Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-).
• Communication standards: IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab.
• PoE protocol: IEEE802.3af, IEEE802.3at.
• Switching capacity: 20 Gbps.
• Packet forwarding rate: 14.88 Mpps.
• Packet buffer memory: 2 Mbit.
• MAC Table size: 2K Byte.
• Long distance PoE transmission: no.
• ePoE: no.
• Application humidity: 5%~95%.
• Power: Built-in power supply: 100–240 V AC; 50/60 Hz; 1.5 A max.
• Lightning Protection Common Mode: 2 kV.
• Differential mode: 0.5 kV.
• ESD Protection Air discharge: 8 kV.
• Contact discharge: 6 kV.
• Working temperature: -10°C~55°C.
