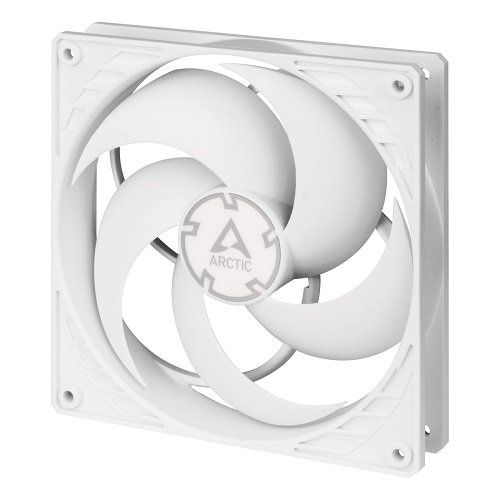

Arctic P14 PWM Fan 4-pin / 140mm (ACFAN00222A)

The ARCTIC P14 PWM (model ACFAN00222A) is a high-performance 140 mm fan optimized for high static pressure, making it an ideal choice for use on radiators and heat exchangers. With PWM Sharing Technology (PST), the fan can synchronize its speed with other fans in the system, providing efficient and quiet cooling. The fan blade design ensures a focused airflow, and the Fluid Dynamic Bearing guarantees a long service life and low noise levels.

Key Features:

• Dimensions: 140 x 140 x 27 mm
• Rotation Speed: 200–1700 RPM (PWM controlled)
• Airflow: up to 72.8 CFM (123.76 m³/h)
• Static Pressure: 2.4 mm H₂O
• Noise Level: up to 22.5 dBA
• Bearing Type: Fluid Dynamic Bearing
• Connection: 4-pin PWM with additional 4-pin socket for PST
• Color: White
