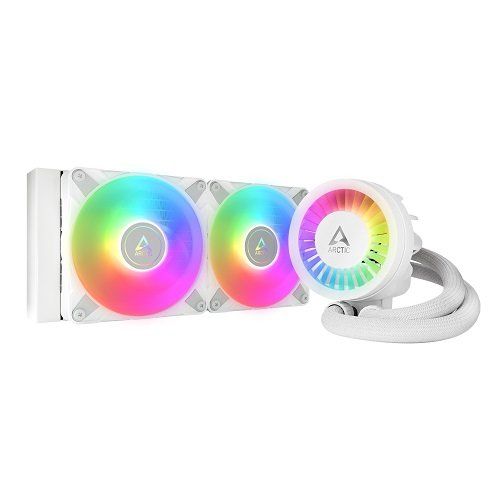

Arctic Liquid Freezer III - 240 A-RGB CPU Cooler (ACFRE00150A)

General Specifications

• Thermal Paste: MX-6 (0.8 g)
• Operating Ambient Temperature: 0—40 °C
• PI | NNPI: 308 | 230
• LED Connector: 3-Pin A-RGB Connector
• All-In-One Connector: 4-Pin PWM Connector
• Splitt Connector: 3x 4-Pin PWM Connector
• Weight: 1490 g

Compatibility

• Intel: 1851, 1700
• AMD: AM5, AM4

Pump Specifications

• Pump: 800—2800 rpm (PWM controlled)
• Current | Voltage: 0.35 A | 12 V DC
• Cold Plate: Copper, Micro Skived Fins
• Tube Length: 450 mm
• Tube Diameter: Outer: 12.4 mm, Inner: 6.0 mm

Radiator Specifications

• Material: Aluminium
• Dimensions: 277 (L) x 120 (W) x 38 (H) mm

VRM Module Specifications

• VRM Fan: 400—2500 rpm (PWM controlled)
• Current | Voltage: 0.05 A | 12 V DC

LED Specifications

• LEDs: 12x A-RGB LEDs
• Current | Voltage: 0.40 A | 5 V DC

Fan Specifications

• General: 2x P12 PWM PST A-RGB
• Speed: 200—2000 rpm
• Air Flow: 48.82 cfm | 82.91 m³/h
• Static Pressure: 1.85 mmH2O
• Bearing_ Fluid Dynamic Bearing
• Current | Voltage: 0.11 A | 12 V DC
• Cable Length: 40 mm
• Connector: 4-Pin PWM Connector

RGB Specifications

• LEDs: 12x A-RGB LEDs
• Current | Voltage: 0.40 V | 5 V DC
• Cable Length: 40 mm + 80 mm Splitter Cable
• Connector: 3-Pin A-RGB Connector + 3-Pin Plug
