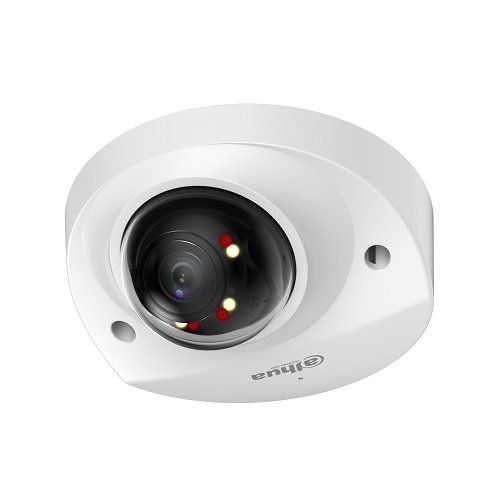

Dahua HDBW2449F-AS-IL IP Network camera 4MP / 2.8mm (HDBW2449FSIL)

Camera

Image Sensor

• Sensor Type: 1/2.9" CMOS
• Max. Resolution: 2688 (H) x 1520 (V)
• ROM: 128 MB
• RAM: 128 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
• Minimum Illumination:
  • 0.006 lux@F1.6 (Color, 30 IRE)
  • 0.0006 lux@F1.6 (B/W, 30 IRE)
  • 0 lux (Illuminator on)
• S/N Ratio: >56 dB
• Illumination Distance:
  • Up to 30 m (98.43 ft) (IR)
  • Up to 30 m (98.43 ft) (Warm light)
• Illuminator On/Off Control: Auto; Manual
• Number of Illuminators: 4 (Multi-core (IR + warm) light)
• Angle Adjustment:
  • Pan: -30° to 30°
  • Tilt: 0° to 80°
  • Rotation: 0° to 360°

Lens

• Lens Type: Fixed-focus
• Lens Mount: M12
• Focal Length: 2.8 mm
• Max. Aperture: F1.6
• Field of View:
  • 2.8 mm: H: 101°; V: 54°; D: 120°
• Iris Control: Fixed
• Close Focus Distance: 2.8 mm: 1.1 m (3.61 ft)

DORI Distance

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) used to define the ability of a person viewing the video to distinguish persons or objects within the covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to the installation and commissioning manual or project design tool.

Intelligence

• IVS (Perimeter Protection): Intrusion, tripwire (supports classification and accurate detection of vehicles and humans)
• SMD: SMD Plus
• Smart Search: Works with Smart NVR to perform refined intelligent searches, event extraction, and merging of event videos

Video

• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub-stream)
• Smart Codec: Smart H.265+; Smart H.264+
• Video Frame Rate:
  • Main Stream: 2688 x 1520 @ (1–20 fps)/2560 x 1440 @ (1–25/30 fps)
  • Sub-stream: 704 x 576 @ (1–25 fps)/704 x 480 @ (1–30 fps) The values above are the max. frame rates of each stream; for multiple streams, the values will be subject to the total encoding capacity.
• Stream Capability: 2 streams
• Resolution:
  • 4M (2688 x 1520/2560 x 1440); 3M (2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)
• Bit Rate Control: CBR/VBR
• Video Bit Rate:
  • H.264: 32 kbps–6144 kbps
  • H.265: 12 kbps–6144 kbps
• Day/Night: Auto (ICR)/Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: 120 dB
• White Balance: Auto; Natural; Street Lamp; Outdoor; Manual; Regional Custom
• Gain Control: Auto/Manual
• Noise Reduction: 3D NR
• Motion Detection: OFF/ON (4 areas, rectangular)
• Region of Interest (RoI): Yes (4 areas)
• Smart Illumination: Yes
• Smart Dual Light: Yes
• Image Rotation: 0°/90°/180°/270° (Supports 90°/270° with 2688 x 1520 resolution and lower)
• Mirror: Yes
• Privacy Masking_ 4 areas

Audio

• Built-in MIC: Yes, built-in Mic
• Audio Compression: G.711a; G.711Mu; G.726; PCM

Alarm

• Alarm Event:
  • No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception; external alarm

Network

• Network Port: RJ-45 (10/100 Base-T)
• SDK and API: Yes
• Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
• Interoperability: ONVIF (Profile S & Profile G & Profile T); CGI

User/Host

• 6 (Total bandwidth: 36 M)

Storage

• FTP; SFTP; Micro SD card (supports up to 256 GB)

Browser

• IE; Chrome; Firefox

Management Software

• Smart PSS Lite; DSS; DMSS; DoLynk Care

Mobile Client

• iOS; Android

Cybersecurity

• Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; X.509 certificate generation and import; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Certifications

• CE-LVD: EN62368-1
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Ports

• Audio Input: 1 channel (RCA port)
• Audio Output: 1 channel (RCA port)
• Alarm Input: 1 channel in: wet contact, 5 mA 3–5 VDC
• Alarm Output: 1 channel out: wet contact, 300 mA 12 VDC

Power

• Power Supply: 12 VDC/PoE (802.3af)
• Power Consumption:
  • Basic: 2.3 W (12 VDC), 2.8 W (PoE)
  • Max_ 7.1 W (12 VDC), 8.5 W (PoE) (H.265 + intelligence on + WDR + illuminator intensity)

Environment

• Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity: ?95%
• Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Storage Humidity: ?95%
• Protection: IP67; IK10
